What is MACD_Based_Price_Forecasting_5D?
MACD_Based_Price_Forecasting_5D is an MT4 technical indicator that analyzes historical MACD momentum memory to project potential future price forecasting bands and percentile boundaries on your chart.
How to use MACD_Based_Price_Forecasting_5D

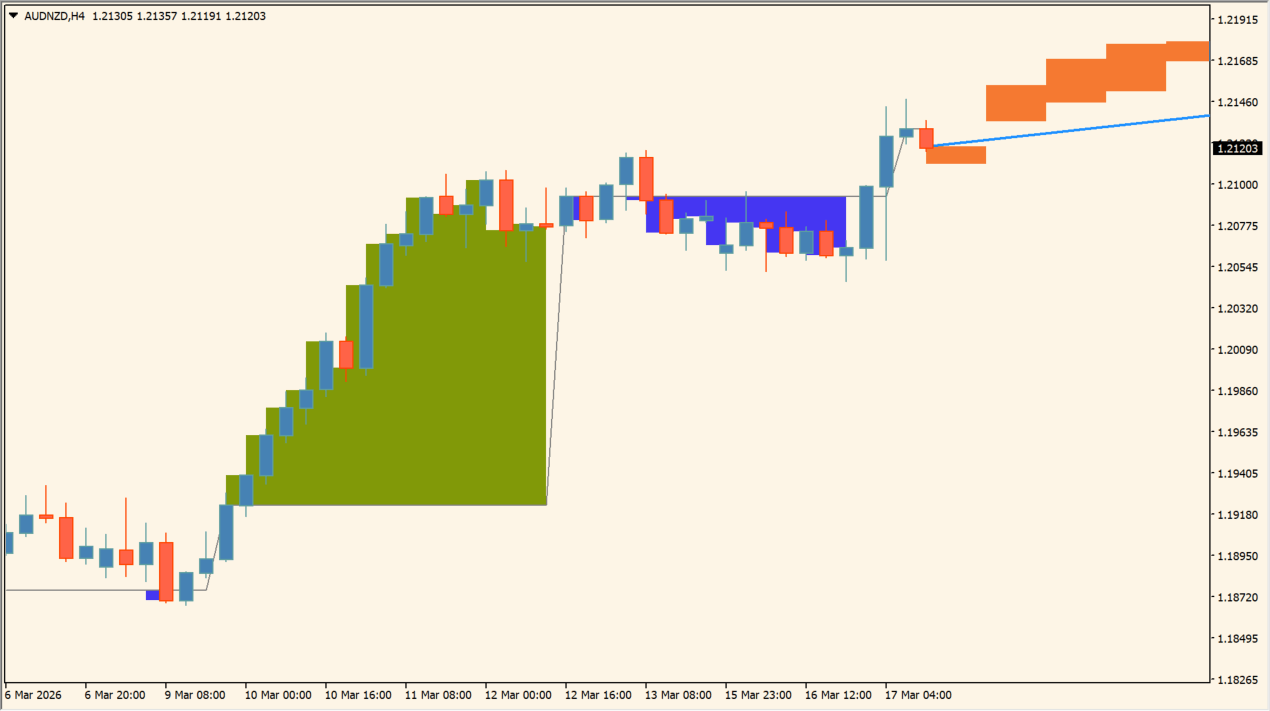

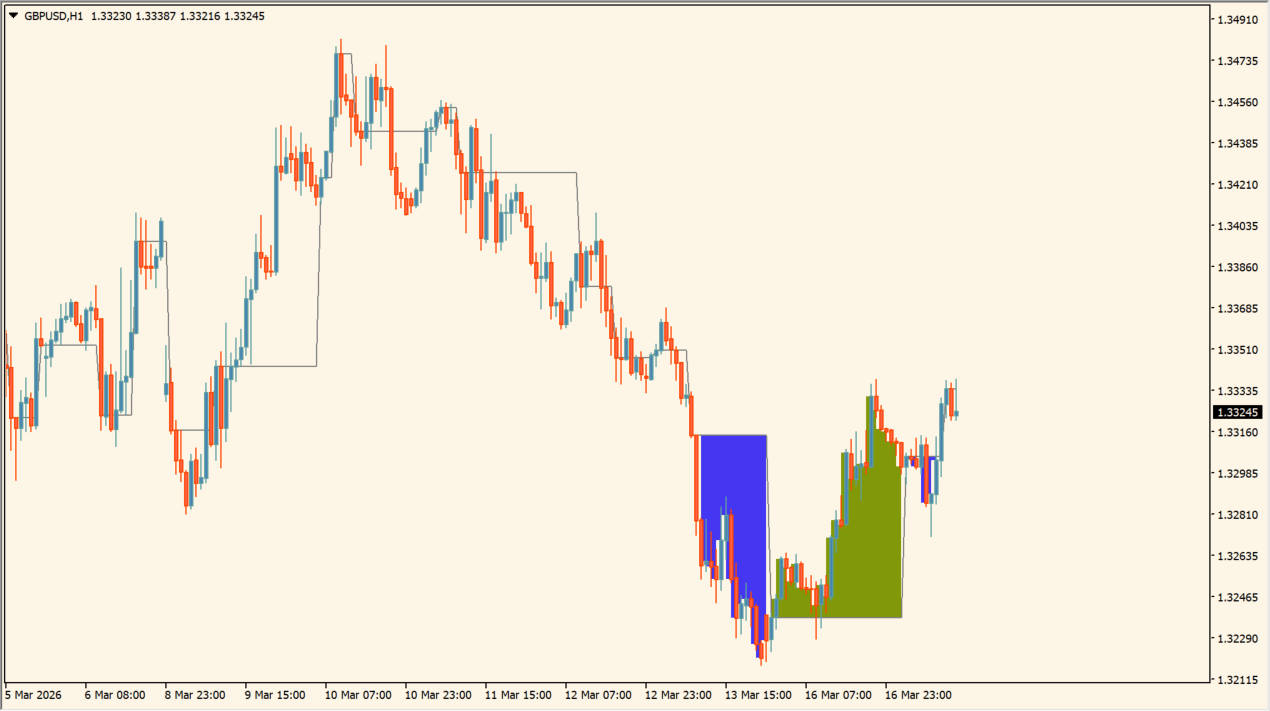

Attach the indicator to your chart to observe projected upper, average, and lower percentile forecast areas. Use these visual reference areas alongside broader market structure context.
Where it helps
Displays forward-looking projection lines on the chart based on MACD calculations.
Plots upper, average, and lower forecast percentile lines on the chart.
Customizable fast, slow, and signal EMA periods to adapt to different trading instruments.
MT4 Indicator Parameters
The table below lists the available MT4 indicator parameters. You can customize these options in the MetaTrader Inputs dialog to match your trading preferences.
| Parameter | Description |
|---|---|
| FastLength | Sets the fast EMA calculation period. Default: 12. |
| SlowLength | Sets the slow EMA calculation period. Default: 26. |
| SignalLength | Sets the signal line calculation period. Default: 9. |
| TrendDetermination | Sets the trend determination mode. Default: MACD - Signal. |
| MaximumMemory | Sets maximum historical memory length. Default: 50. |
| ForecastingLength | Sets future forecasting bar length. Default: 50. |
| TopPercentile | Sets upper percentile boundary. Default: 80.0. |
| AveragePercentage | Sets average percentage boundary. Default: 50.0. |
| BottomPercentile | Sets lower percentile boundary. Default: 20.0. |
| EnablePerformanceMode | Enables or disables performance optimization mode. Default: true. |
| UpLineColor | Sets line color for uptrend forecast. Default: clrDodgerBlue. |
| DnLineColor | Sets line color for downtrend forecast. Default: clrOrangeRed. |
| UpAreaColor | Sets area fill color for uptrend forecast. Default: C'245,121,49'. |
| DnAreaColor | Sets area fill color for downtrend forecast. Default: C'0,93,255'. |
| ShowSignalArea | Enables or disables signal area display. Default: true. |
| SignalBullColor | Sets bullish signal highlight color. Default: C'129,153,8'. |
| SignalBearColor | Sets bearish signal highlight color. Default: C'69,54,242'. |

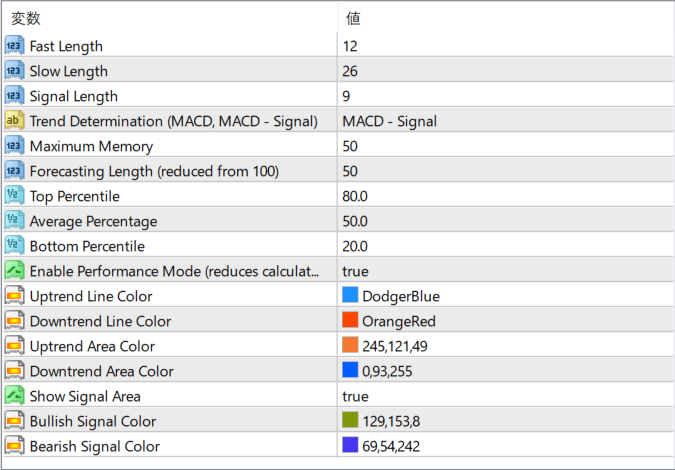

The screenshot above shows the default input parameters in the MT4 settings window.
How to Install .ex4 Indicator in MetaTrader 4
- Download the ZIP file and extract it.
- In MT4, select File → Open Data Folder.
- Open MQL4 → Indicators and copy the EX4 or MQ4 file into it.
- If the package includes library files, copy them to MQL4 → Libraries. Copy TPL files to the top-level templates folder.
- Restart MT4, find the indicator in the Navigator, and drag it onto a chart.
Test the tool on a demo account first. File contents and required folders can vary between packages.
